SOLARA 002-01

Product Information :
 "1L Modular = 60W = > 11,000 Lumen. (>170LW)
LED CHIP: Philips 5050, Number of Modules:  60Pcs modular.
CRI: 70, CCT: 4000K

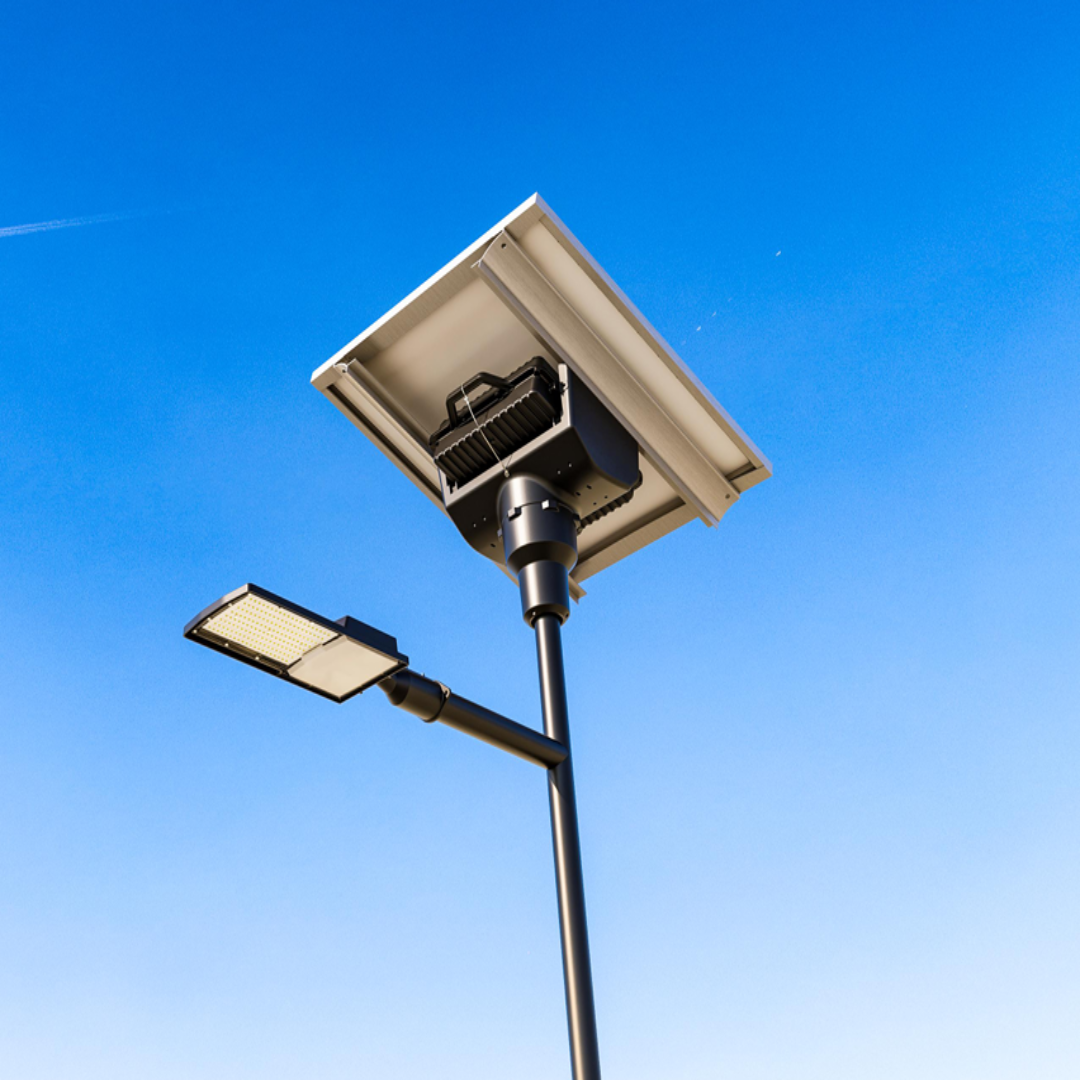

Street Light Fixture Dimensions: 589X207X78mm
Panel Size: 980*980mmX30mm
Panel Frame Size: 3.03cm
Panel Voltage: 18V 130W
Batter Cell: Gotion High Tech 32135 15AH, 3,2V A+ Grade
Connection: 8 On Row
Number Of Batteries: 16 Nos.
Battery Capacity: 12.8V, 60AH.
Battery Life: >3000 Cycle.
Battery Box to have an aluminum heat sink tray under the battery with a thickness of 2mm, and 2 Clamps to hold the battery to the battery box base.
Controller: SRNE DM80
Program: 6H 100%, 6h 50%
The Battery Box will have 3 pin plugs for LED, and Solar Panel + Switch + Charging Indicator."
