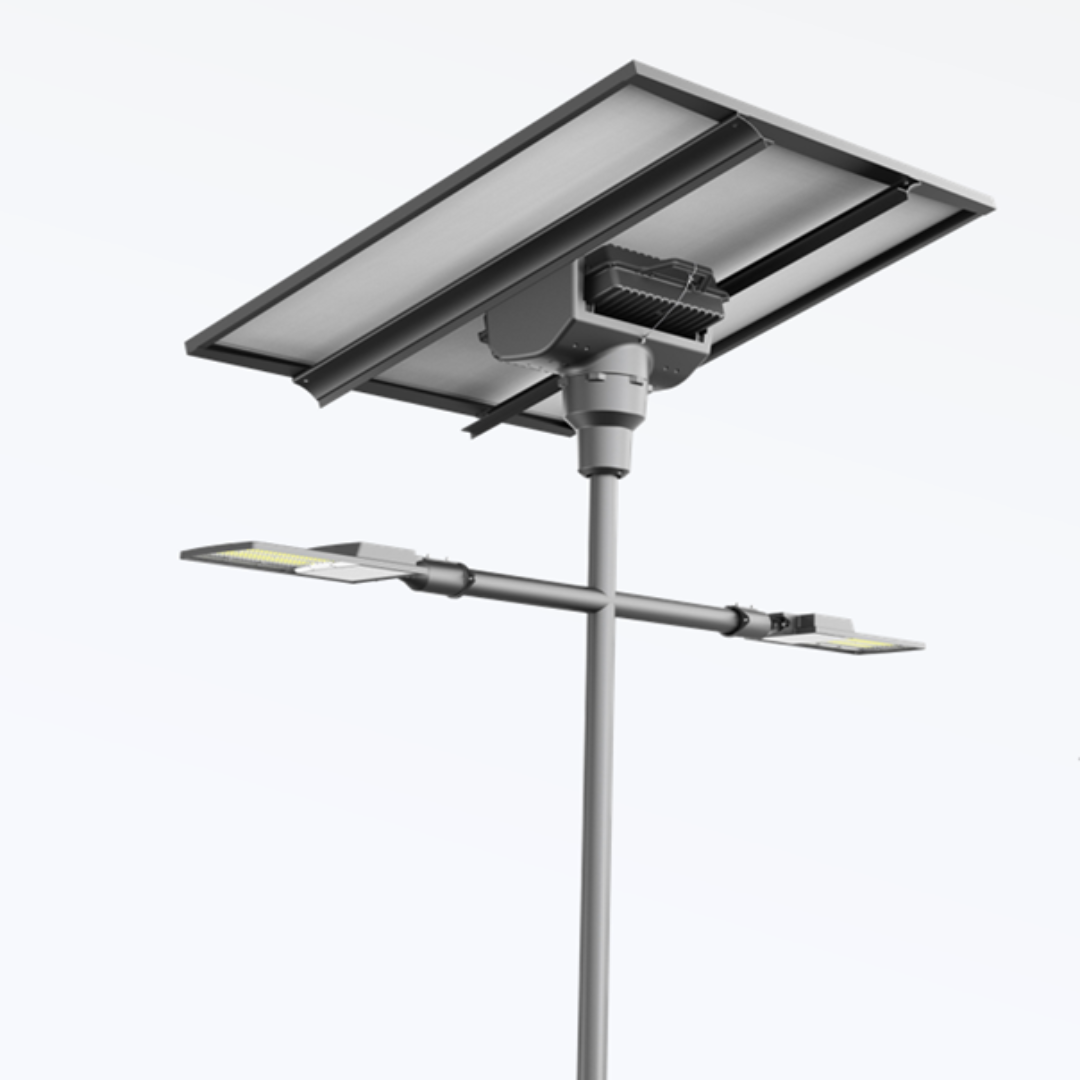

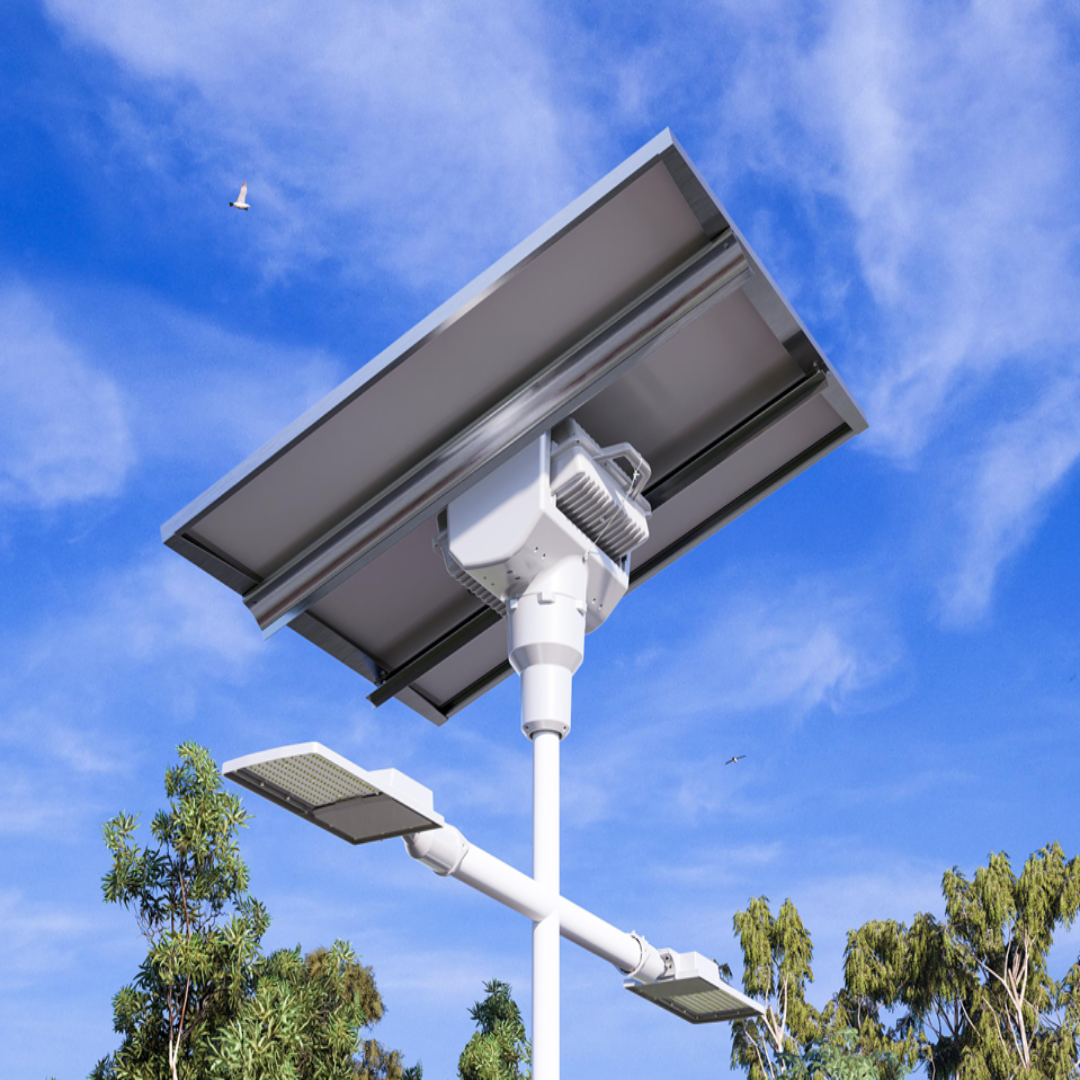

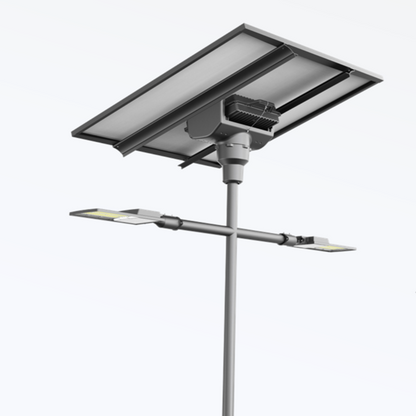

SOLARA 002-02

Product Information :
2 Light X 60W = >22,000 Lumen.(>170LW)Each is 11,000 Lumen
LED CHIP: Philips 5050, Number of Modules:  60Pcs in each modular.
CRI: 70, CCT: 4000K
Panel Size: 1134X1303x30mm.
Frame Size: 3cm
Panel Voltage: 36V 260W
Batter Cell: Gotion High Tech 32135 15AH, 3,2V
Connection: 8 On Row + 8 On a Raw 2 Level.
Number Of Batteries: 32 Nos.
Battery Capacity: 25.6V, 60AH.
Battery Life: >3000 Cycle.
Battery Box to have an aluminum heat sink tray under the battery with a thickness of 2mm, and 2 Clamps to hold the battery to the battery box base.
Controller: SRNE DM160
Street Light: PC cover + 10/15 Degree Tilting
LED CHIP: Philips 5050
Street Light Fixture Dimensions: 589X207X78mm
Program: 6H 100%, 6h 50%
The Battery Box will have 3 pin plug for LED, and Solar Panel + Switch + Charging Indicato
